CEMENT GEOFOAM, CEMENT GEOTECHNICAL FILL OR LIGHTWEIGHT CEMENT FILL
Allied Low Slump  CEMENT Geofoam - A GAME CHANGER in the Geofoam MarkET

Allied "Cement Geofoam" will greatly simplify the application and cost relative to the "Expanded Polystyrene (eps) Geofoam"

 Highway/Rail Embankment, Bridge Underfill, Landscape Architecture, Slope Stabilization, Levees, Airport Runway, Road Construction


          Allied 5-50 pcf Low Slump Cement Geofoam Conventional 07-2.0 PCF Low Density EPS Geofoam
Low load on the surrounding soil Low load on the surrounding soil
Casting with a continuous low slump pour stacking of individual blocks delivered on site

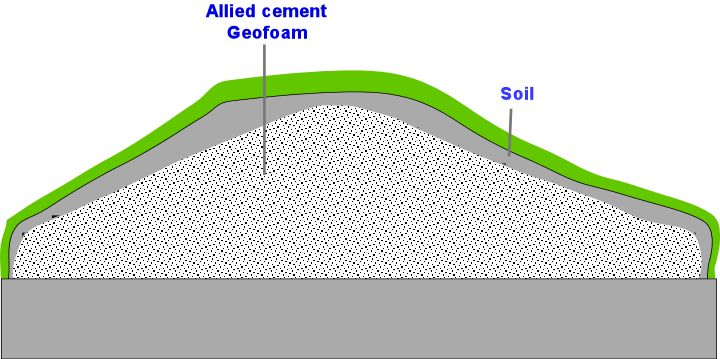

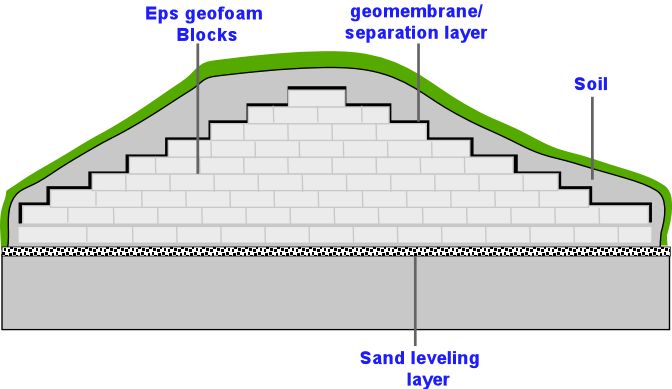

Shape & conform to the landscape easily with the low slump cast Shape & conform to the landscape easily with the precast blocks
Foam formation on site through compressed air and foam agent Huge number of eps blocks have to be delivered on site
No fire hazard, good solvent resistance Fire hazard, lack of solvent resistance (geomembrane needed)
Intimate soil contact with easy surface leveling and slope build-up Sand leveling or other means needed for block alignment
Uniform and bulk cast without gap, no concerns for buoyancy or individual piece heaving/floatation due to ground water Inter block locking plates may be needed to avoid uneven block alignment, gap formation or uneven heaving due to ground water
Uniform & continuous pour/cast with ease of contour buildup Interblock locking and trimming may be needed for block alignment
Wide range of density and strength possible (5 - 50 pcf, 2 > 500psi) Density & strength are limited (0.6 - 2.0 pcf, 2-10 psi at 1%)
Click here if interested in our foam & foam generator

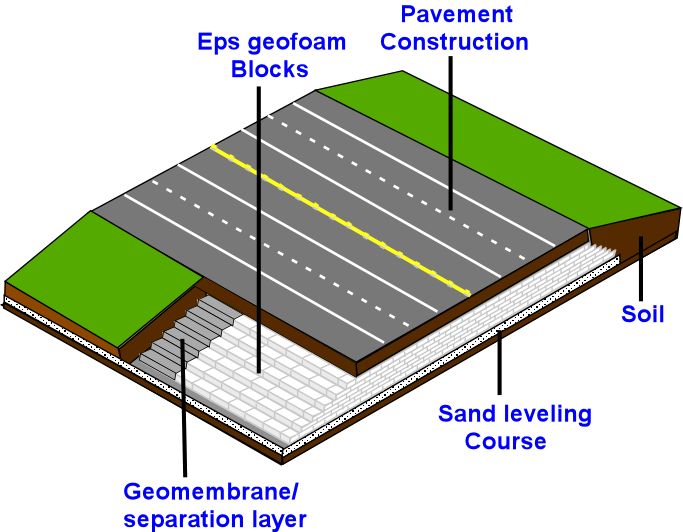

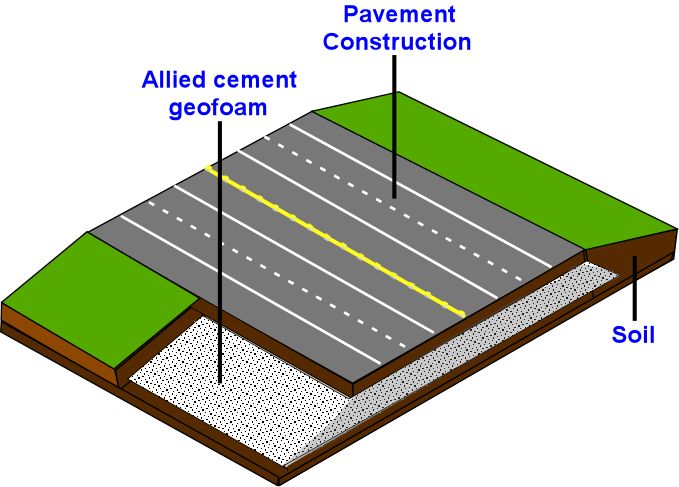

HIGHWAY CONSTRUCTION OVER SOFT OR LOOSE SOILS
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

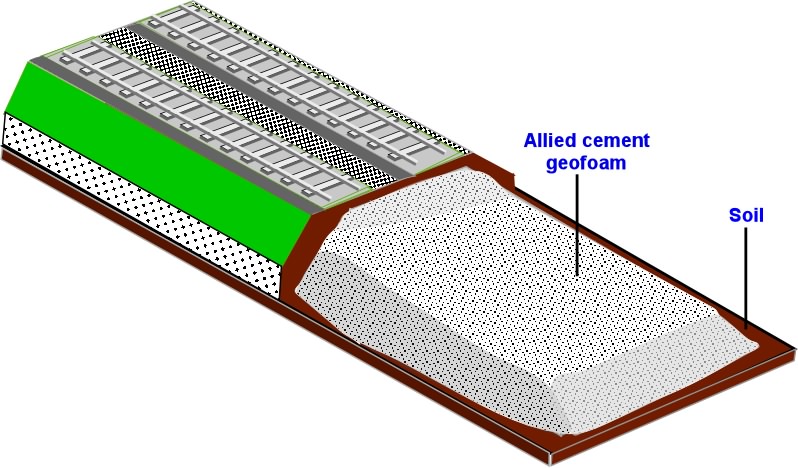

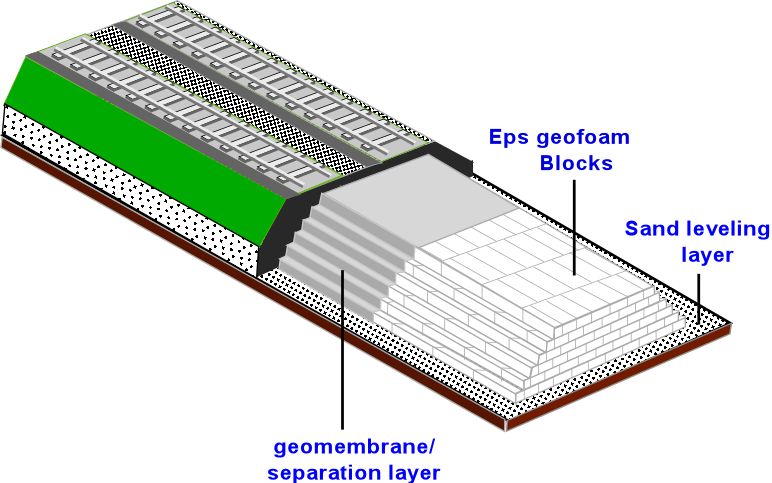

RAILWAY  EMBANKMENT
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

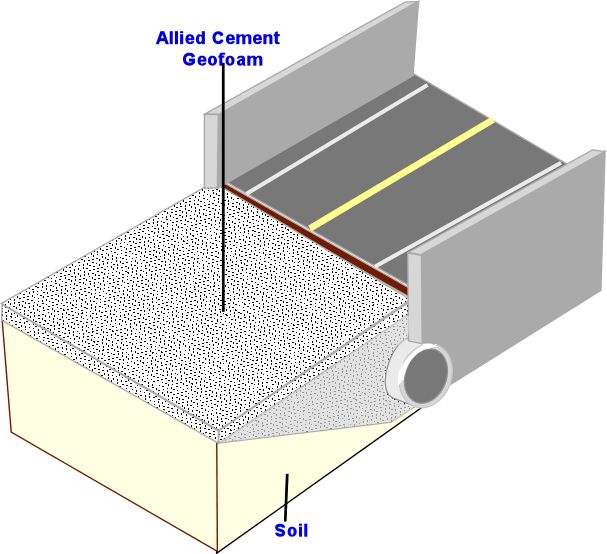

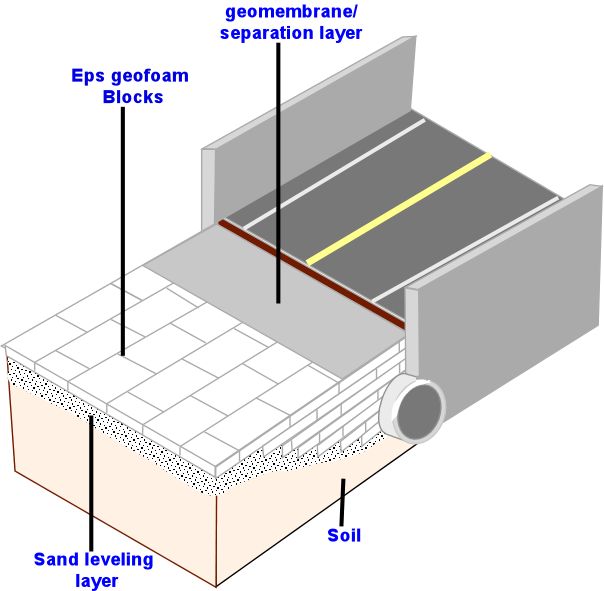

UNDERGROUND PIPELINES & BURIED STRUCTURES
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

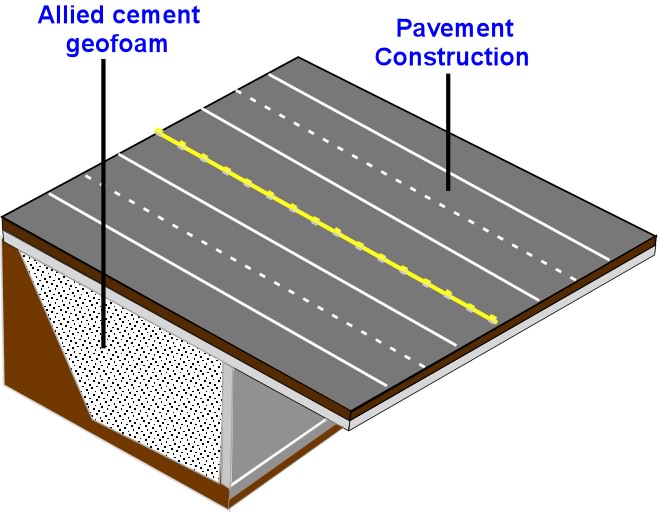

BRIDGE ABUTMENT AVOIDING OVER STRESSING THE UNDERLYING SOIL
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

ARCHITECTURE LANDSCAPE
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

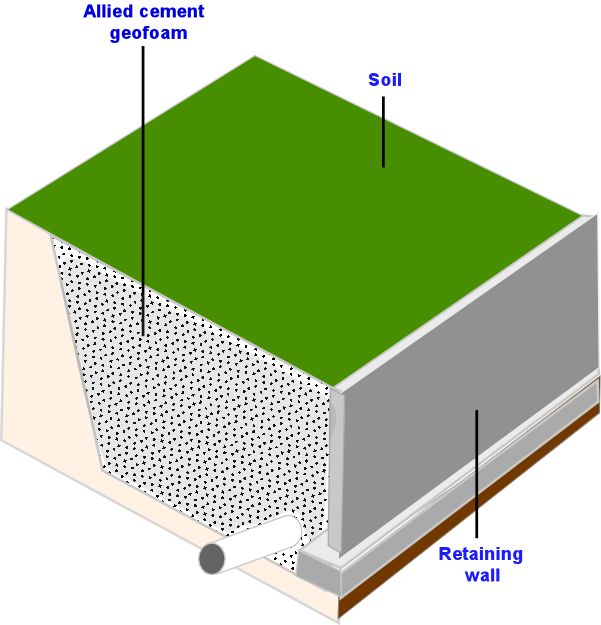

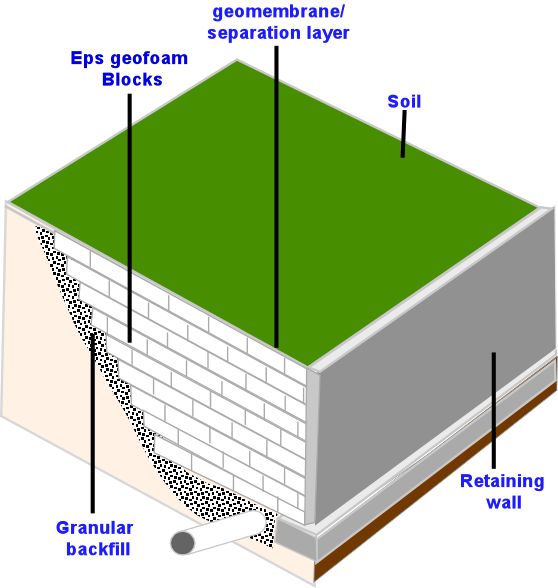

RETAINING & BURIED WALL BACKFILL
cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill


Allied Low Slump Cementitous Geofoam - easy to shape & conform to the landscape without moulds

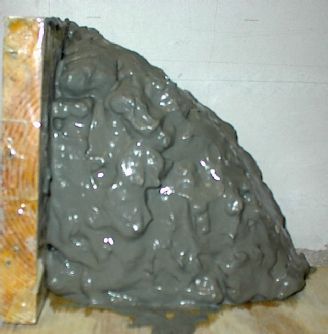

Cast w/o Mould - Wet

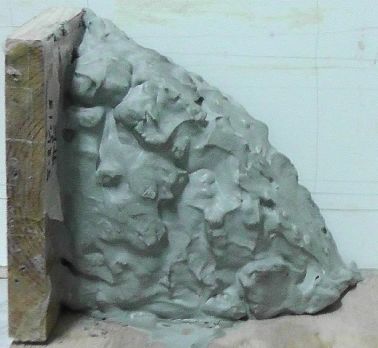

Cast w/o Mould - Dry (d=25 pcf)

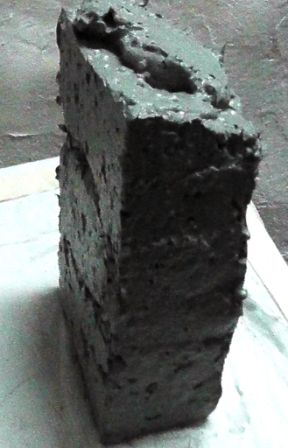

Mould-free Cast- Wet

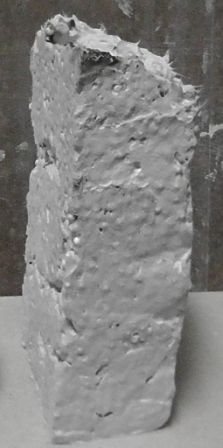

Mould-free Cast - Dry (d=8 pcf)

cement geofoam,cement geotechnical fill,lightweight cement fill cement geofoam,cement geotechnical fill,lightweight cement fill

cement geofoam,cement geotechnical fill,lightweight cement fill

cement geofoam,cement geotechnical fill,lightweight cement fill

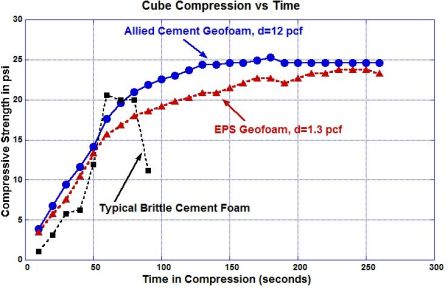

Fiber Re-enforced Allied Cement Geofoam vs EPS Geofoam - Very Comparable Toughness During Compression

geofoam, geotechnical fill,lightweight fill

* Higher compressive strength can easily be reached by a slight density increase of Allied Cement Geofoam, e.g. 85 psi at a density of 16 pcf.

Landscape Architechture on the Roof - An application with allied low slump foam cement
HARVARD UNIVERSITY - NorthWest Science Building, 530,000 ft2 multidisciplinary research facility
 The World's 1st Low Slump Cement Geotechnical Roof Fill used Allied's Cement Composite Design, Foam Products & Machinery.

The award winning facility places more than half the total square footage of the facility below grade, and incorporates three functioning green roofs. The south fašade of the Northwest Science Building defines a new South Yard, equipped with low landscape furniture. The yard is a green roof over extensive basement levels, with skylights bringing daylight into the underground areas.

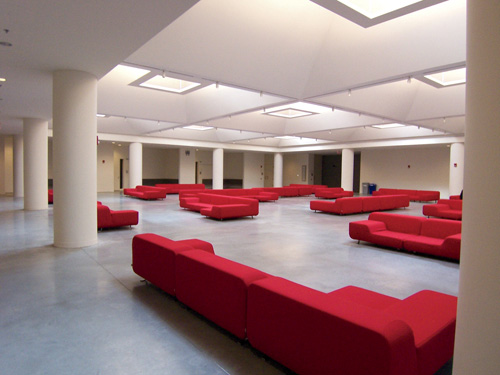

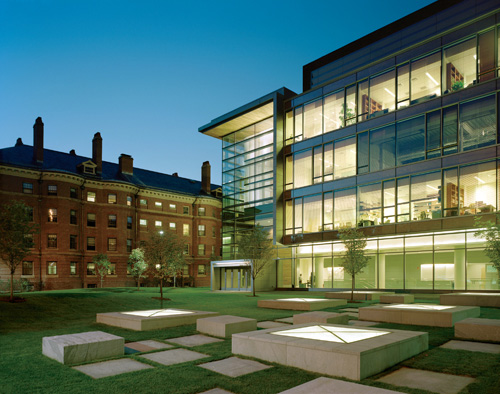

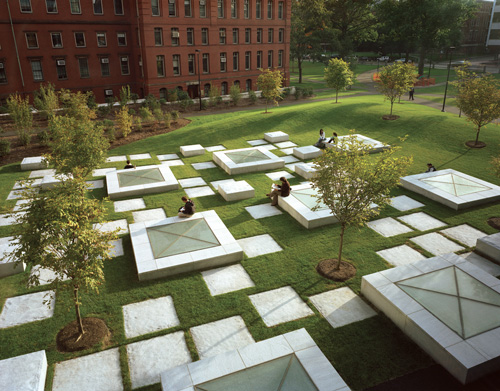

Landscape Design Landscape on top of the Foam Cement-soil structure Recreation Area under the Foam Cement Composite Night View around the Landscape
cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill>
(Pre-project mockup work by Allied Foam Tech is shown below)
cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill>
Mixing & Pumping of High Applying of High Slump Loss Finished Foamed Cement Crown Cross-section of
Slump Loss Foam Cement Foam Cement on 1 Vertical/4 Horizontal Slope On Highly Sloped Geofoam Landscape after ~ 1 year



Another example of low load pavement with Allied low density and yet high strength foam cement is shown by a recently renovated sports field  on the roof of an existing gymnasium-120,000 square foot coverage with foamed cement pumped 2 stories in height and 500 feet across the entire field.
 (the weight limit, compressive, shear and other performance demand and its  intended use made the
 project one of its kind in the US roof deck industry.)

GEORGETOWN UNIVERSITY - Roof Deck for Sports Utility


                                      Foam Sytem - AFT-450 series at 35 pcf (565 kg/m3)
Roof condition before Roof  preparation  Material Setup Equipment Setup
cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill>
Pouring foam cement  Foam cement roofdeck Turf application Gym under the deck
cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill> cement geofoam,cement geotechnical fill,lightweight cement fill>
Allied geotechnical  cement fill at < 13 pcf dry (single lift)
